450W 24 ports POE switch 1G 2 Uplink 2 SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

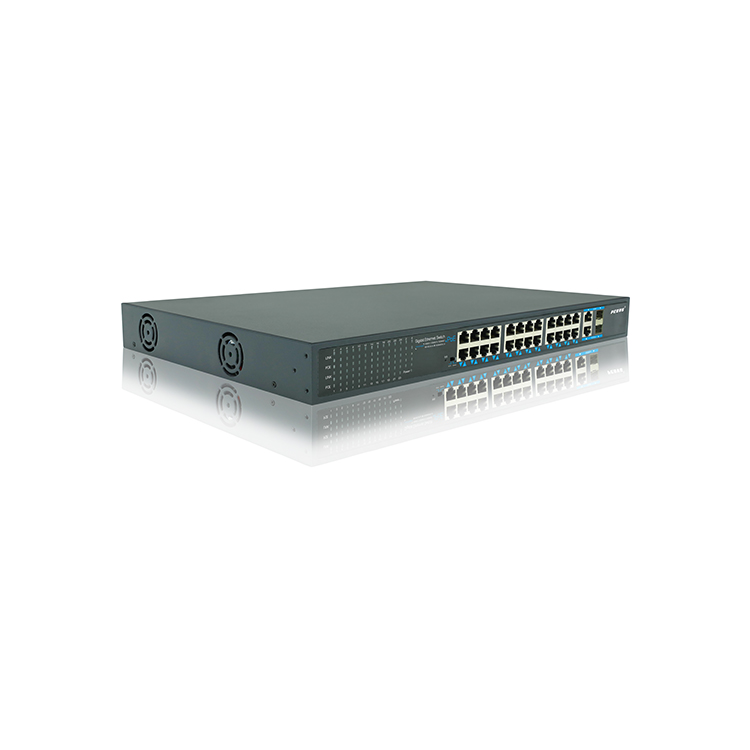

450W 24 ports POE switch 1G 2 Uplink 2 SFP

● 28 ports switch with 24 ports 1000Mbit PoE, 2 Gigabit Uplink Ports,2 Gigabit SFP Ports

● PoE data & power transmission distance 100meters

● Maximum 15.4 watts power for each PoE port

● Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m,2 Gigabit Fiber Ports,Data transmission:depends on the optical module

● PoE Standard: IEEE 802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:52V 8.7A 450W

Description of this High Power 450W Gigabit 24 Ports PoE Ethernet Switch

> 24x 10/100/1000Mbps downlink PoE Ethernet Ports,2x 10/100/1000Mbps uplink Ethernet Ports and 2x 1000Mbps uplink SFP Ports;
> Supports port auto-flip (Auto MDI/ MDIX);
> 24 Ports Ethernet Switch Design：Each of 24 ports all support IEEE802.3af/at;
> Maximum power per port: 15.4W / 30W;
> Maximum PoE power: 450W;
> New High Power Ethernet Switch ：Adopts store-and-forward architecture;
> Gigabit 24 Ports Poe Ethernet Switch：Built-in 1U rack power supply series, easy installation.

We are a professional ethernet switch design manufacturer in China.To be productive, we maintain an attitude of excellence.

Specification of this High Power 450W Gigabit 24 Ports PoE Ethernet Switch

Item			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption		450W
Network Connector	Network Port	POE Ethernet Port	1～24 Port : 10/100/1000Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
		SFP Port	SFP Port : 1000Mbps
	Transmission DistanceAA		1～24 Port : 0 ~ 100m;
			Uplink Port : 100m
			SFP: depends on the optical module（Combo）
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u,IEEE802.3x,IEEE802.1D
	Switching Capacity		22Gbps
	Packet Forwarding Rate		14Mpps
	MAC Table		4K
Power Over Ethernet	POE Standard		IEEE 802.3af/at
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af≤15.4Wl;at≤30W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE:24 yellow lights indicate that the POE is power on
			Ethernet:28 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		440 mm 290 mm 45mm
	Color		Black
	Weight		3957g
Stability	MTBF		>30000h
