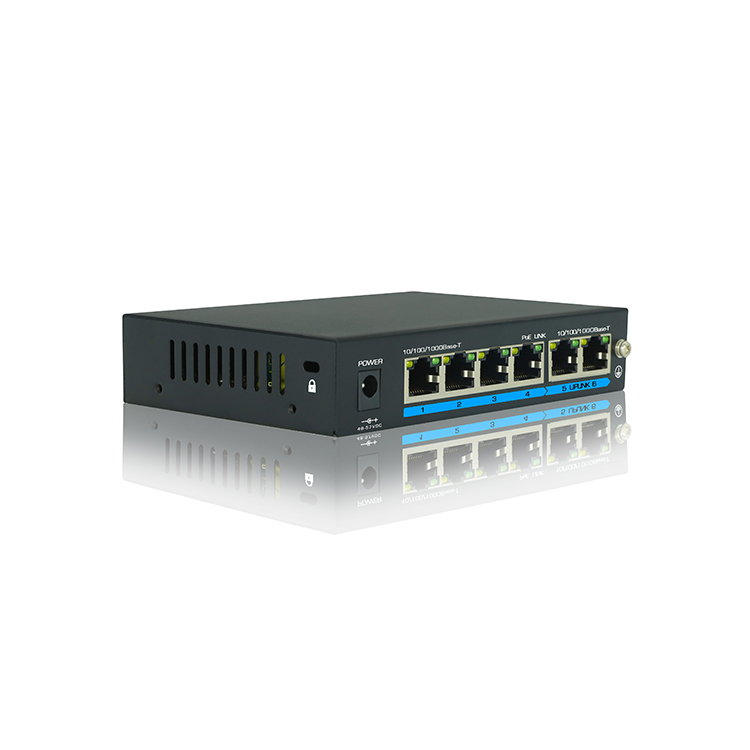

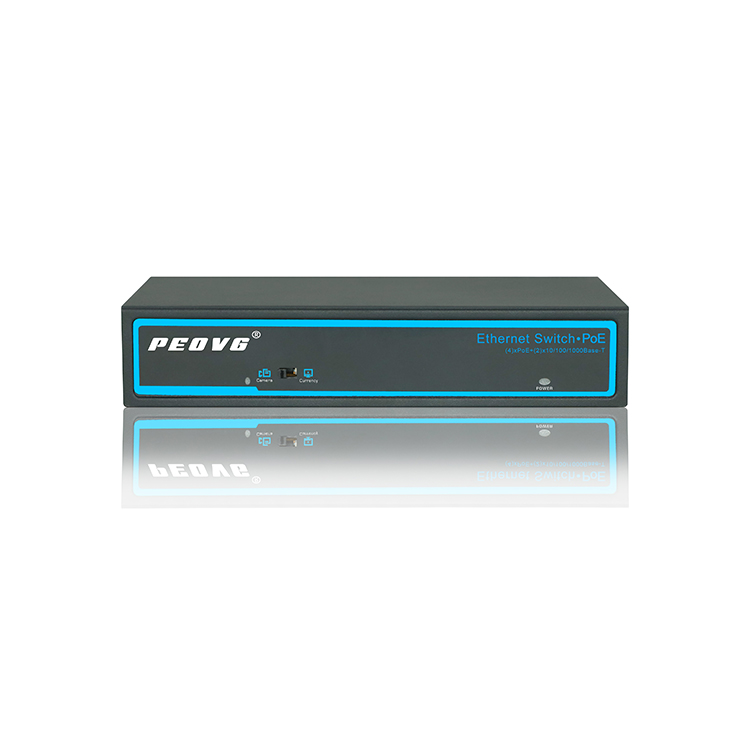

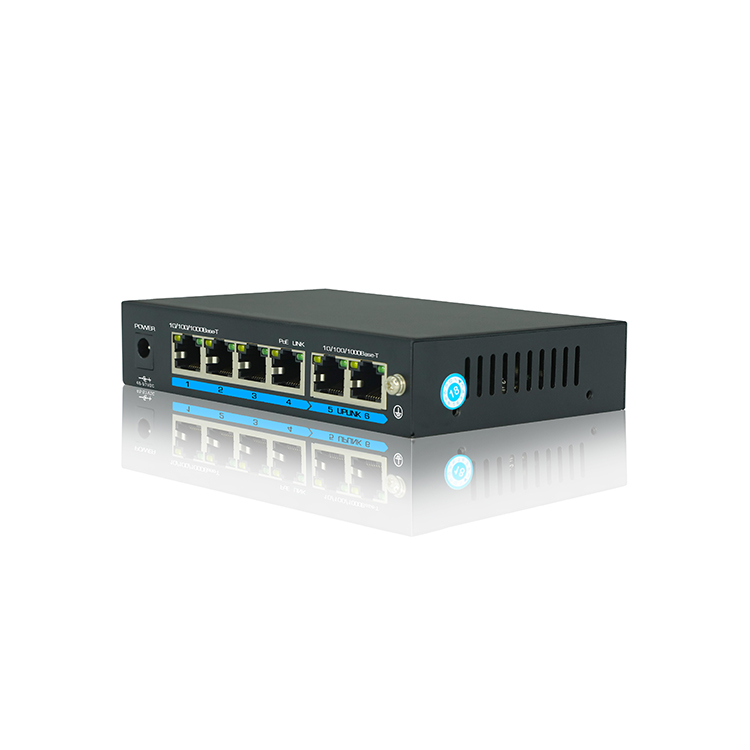

2 Uplink 65W 4 ports POE switch Gigabit

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

2 Uplink 65W 4 ports POE switch Gigabit


● 6 ports switch with 4 port PoE,1000Mbit each port ,2 Uplink
● PoE data & power transmission distance 100meters
● Maximum 15.4 watts power for each PoE port
● PoE Standard: IEEE 802.3af
● PoE Pin: 1/2+,3/6-
●Total Power:52V1.25A 65W
Description of this 6 Ports Switch With 4 Port PoE 1000Mbit 15.4W POE Switch

5x 10/100/1000Mbps auto-sensing RJ45 ports,4x 10/100/1000Mbps PoE ports, 2x uplink port;

Supports port auto-flip (Auto MDI/ MDIX);

Maximum power of single PoE port: 15.4W;

Adopts store-and-forward architecture;

IEEE 802.3af power on up to 4 ports;

With anti-theft lock;

Protection: Excellent anti thunder, anti static and anti-Interference;

External power supply, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;

What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield.

First-class SMT raw materials.

Wide Voltage: 110V~200V (Auto-ID)


Specification of this 6 Ports Switch With 4 Port PoE 1000Mbit 15.4W POE Switch


Item

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

65W

Network

Connector

Network

Port

POE Ethernet Port

1~4 Port : 10/100/1000Mbps

Ethernet port

Uplink Port : 10/100/1000Mbps

Transmission Distance

1~4 Port : 10/100/1000Mbps:0 ~ 100m;

Uplink port:0~100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x

Switching Capacity

12Gbps

Packet Forwarding Rate

8.93Mpps

MAC Table

2K

Power Over

Ethernet

POE Standard

IEEE 802.3af(PSE/PD)

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af=15.4w(every port)

LED Status

Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE: 4 yellow lights indicate that the POE is power on

Ethernet: 6 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

135 mm *89 mm *27mm

Color

Black

Weight

282g

Stability

MTBF

>30000h


Application of this 6 Ports Switch With 4 Port PoE 1000Mbit 15.4W POE Switch
