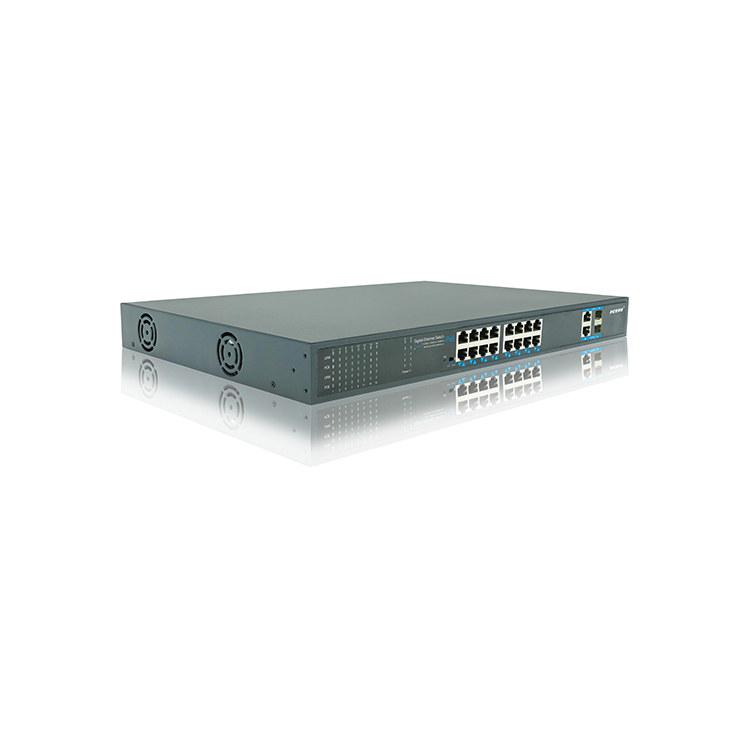

● 20 ports switch with 16 ports 1000Mbit PoE, 2 Gigabit Uplink Ports,2 Gigabit SFP Ports ● PoE data & power transmission distance 100meters ● Maximum 15.4 watts power for each PoE port ● Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m,2 Gigabit Fiber Ports,Data transmission:depends on the optical module ● PoE Standard: IEEE 802.3af ● PoE Pin: 1/2+,3/6- ●Total Power:52V 4.8A 250W
Item |
Description |
|
Power |
Power Adapter Voltage |
110-240V AC |
Consumption |
150W/250W |
|
Network Connector |
Network Port |
1~ 16Port : 10/100/1000Mbps 1~16:POE Ethernet port |
Uplink Port : two Ethernet 1000Mbps SFP 1000Mbps |
||
Transmission DistanceAA |
1~16 Port : 0 ~ 100m; |
|
SFP: depends on the optical module |
||
Transmission Medium |
Cat5/5e/6 standard network cable |
|
Network Switch |
Network Standard |
IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x |
Switching Capacity |
22Gbps |
|
Packet Forwarding Rate |
14Mpps |
|
MAC Table |
4K |
|
Power Over Ethernet |
POE Standard |
IEEE 802.3af/at |
POE Power Supply Type |
End-Span(1/2+;3/6-) |
|
PoE Power Consumption |
af≤15.4W / at≤30W (every port) |
|
LED Status Indicator VLAN/Extend |
POE Ethernet LED Indicator |
Power: 1 red light indicates that the power normal work |
POE:16 yellow lights indicate that the POE is power on |
||
Ethernet:20 green lights indicate that the Ethernet link and act; |
||
Environmental |
Working temperature |
0℃~55℃ |
Relative Humidity |
20~95% |
|
Storage temperature |
-20℃~70℃ |
|
Mechanical |
Dimension (L×W×H) |
440 mm *290 mm *45mm |
Color |
Black |
|
Weight |
3385g |
|
Stability |
MTBF |
>30000h |
