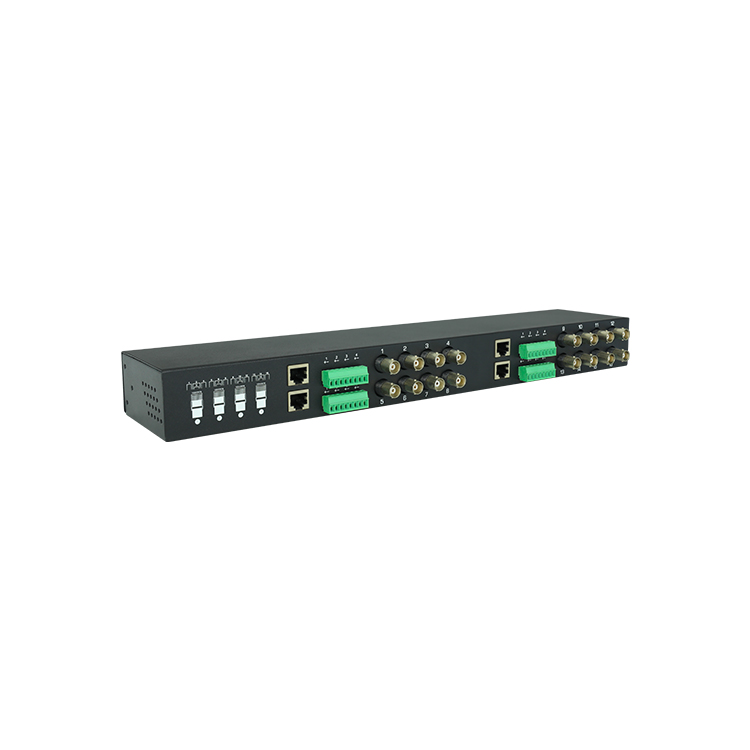

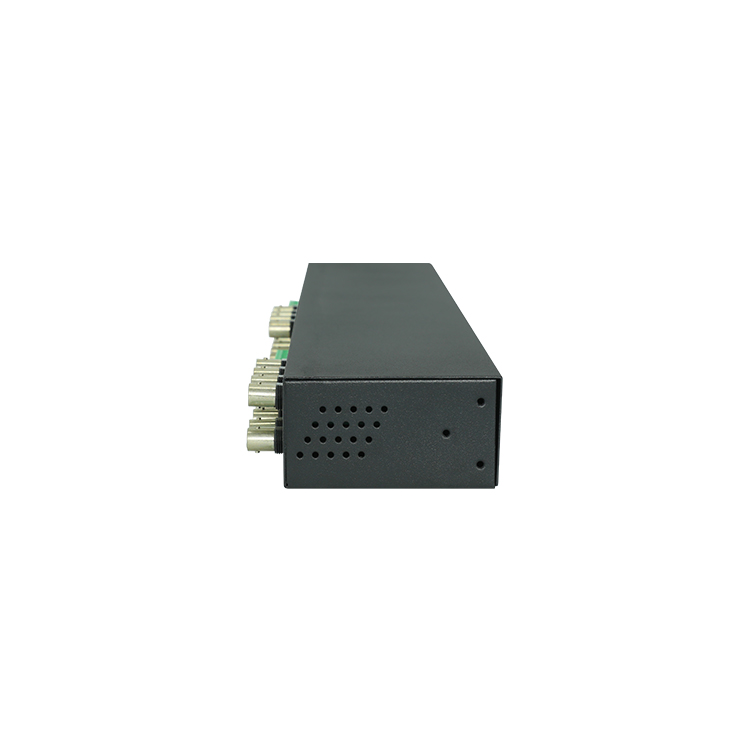

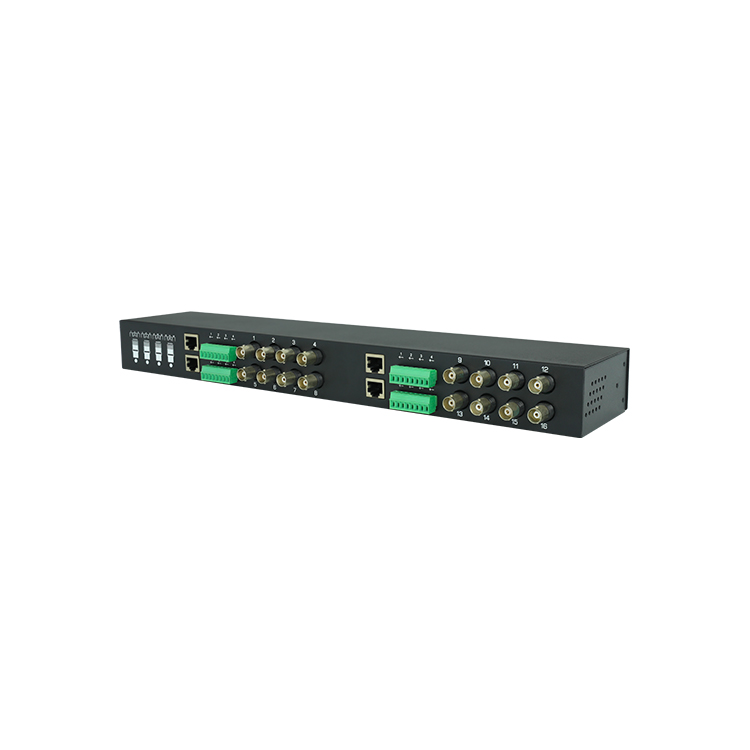

passive 16 ch HD AHD CVI TVI Video balun

●Model number: TT216P-HD

●Color HD video up to 600m with active receiver

●Color HD video transmission distance with passive transceiver:

●HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M

●HDTVI 720P/1080P: 250M; 5Mp:200M ;8MP: 180M

●AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M

●Built in TVS surge protection,metal shell

Description of this passive 16 ch HD AHD CVI TVI Video balun

The TT-216P-HD video balun hub is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported.

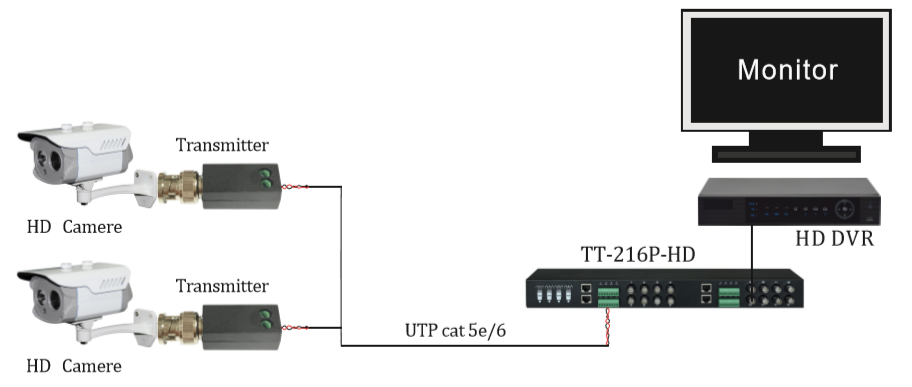

TT-216P-HD supports pluggable screw terminal or RJ45 connections. Used with single channel HD passive video transmitter, it is capable to receive 8 channel live CCTV HD video signal from camera end via one UTP cable.

The superior interference rejection and low emissions of the TT-216P-HD allow video signals to coexist in the same wire bundle as telephone, datacom,or low-voltage power circuit. This allows the use of a shared or existing ccable plant. The TT-216P-HD is built-in surge suppressor to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".

Specification of this passive 16 ch HD AHD CVI TVI Video balun

Model	TT-216P-HD
Properties
Transmission Signal8	16 channel
Transmission Distance (Max)	HDCVI 720P: 400M / 1080P: 250M; 4MP:200M ; 4K/8MP: 180M(Max)
	HDTVI 720P/1080P: 250M; 5MP:200M ; 4K/8MP: 180M(Max)
	AHD 720P: 350M / 1080P: 200M; 5MP:200M; 4K/8MP: 180M(Max)
Video Transmission Properties And Port
Video Connector	BNC-F
UTP Cable Connector	8 pin green terminal block, RJ-45
Compatible Format	HDCVI, HDTVI, AHD, CVBS
Resolution	720P/1080P/4MP/5MP/8MP 4K
Anti-interference	＞60db
Protection
ESD	Contact discharge:6000V Air discharge:8000V Per: IEC61000-4-2
Video Connector Protection	2KV(common mode) Per: IEC61000-4-5
UTP Cable Connector	2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Physical Properties
Shell	ABS
Color	Black
N.W.	558G
Stability
MTBF	＞10000H
Environmental
Operating Temperature	-10~55℃
Storage Temperature	-20~70℃
Humidity	0~95%(non-condensing)
