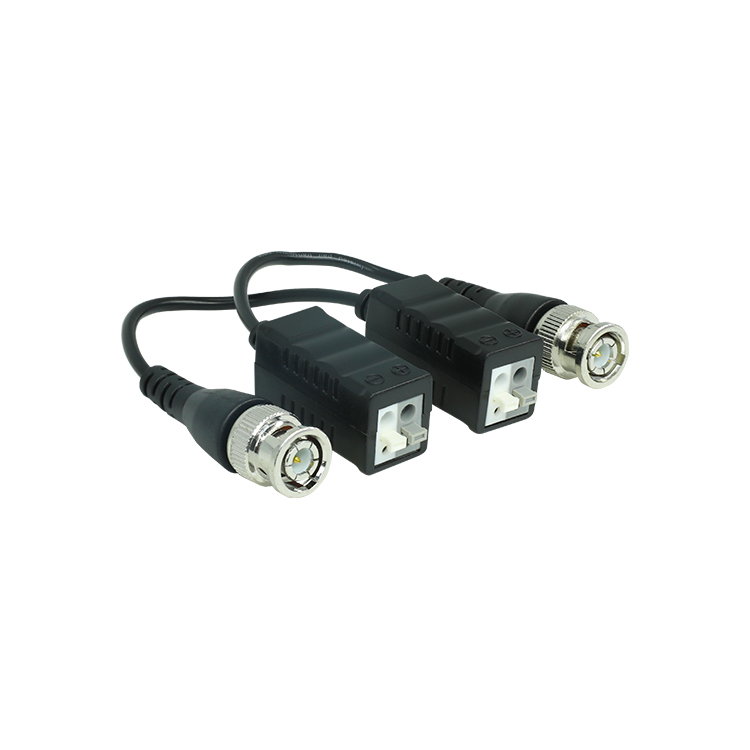

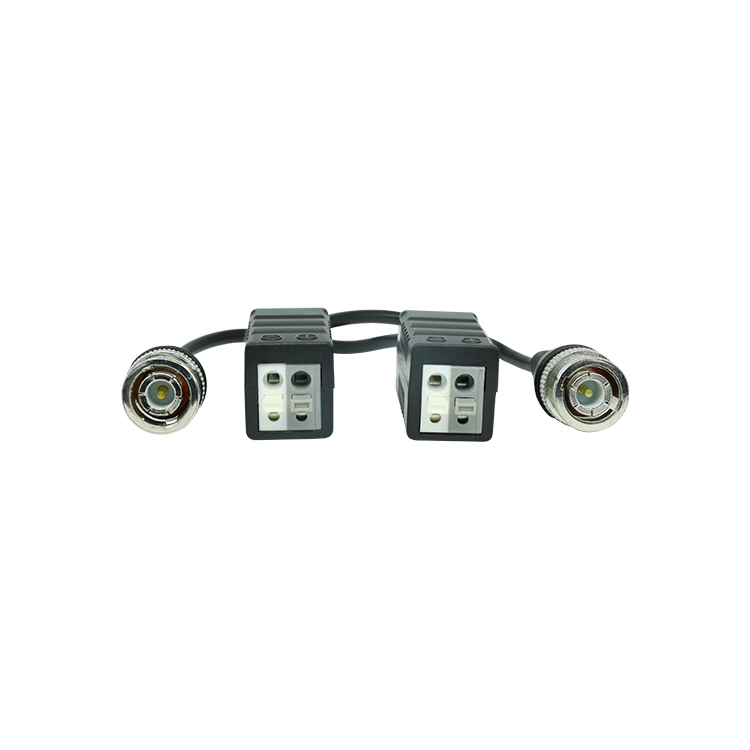

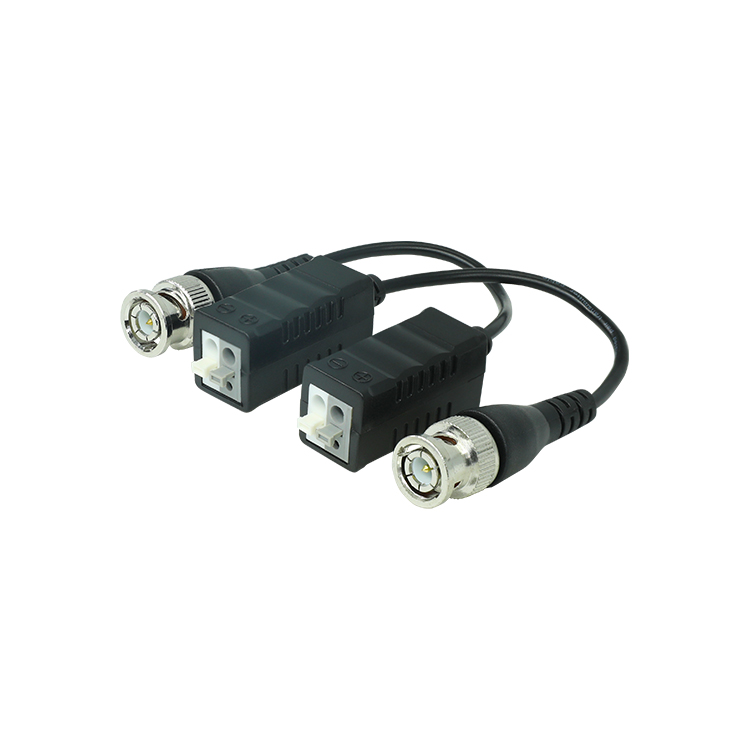

8MP AHD CVI TVI Video transmitter

●Press-fitting terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS

●Color HD video up to 500m with active receiver

●Color HD video transmission distance with passive transceiver:

HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M

HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M

AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M

●Built in TVS surge protection

Description of this HD CVI TVI AHD UTP Economic Type Video Balun

TT-201P-HD-C2 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, TT-201P-HD-C2 eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the TT-201P-HD-C2 allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.

Specification of this HD CVI TVI AHD UTP Economic Type Video Balun

Model	TT-201P-HD-C2
Properties
Transmission Signal	1 channel
Transmission Distance (Max)	HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
	HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
	AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
Category Type	UTP CAT 5E/6 (R＜10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Press-fitting terminal
Compatible Format	HDCVI, HDTVI, AHD, CVBS
Resolution	720P/1080P/4MP/5MP/8MP 4K
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per:IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector	2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Shell	ABS
Color	Black
N.W.	50G
Stability
MTBF	＞10000H
Environmental
Operating Temperature	-10~55℃
Storage Temperature	-20~70℃
Humidity	0~95%(non-condensing)
